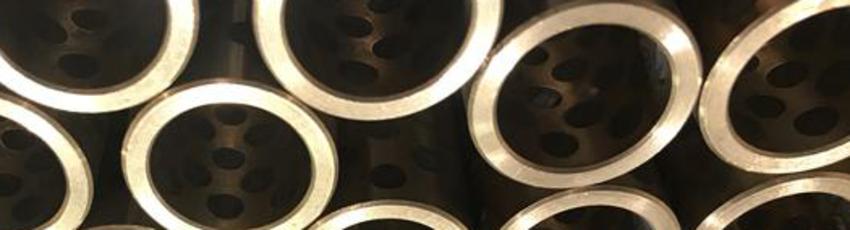

Graphite Plugged Products are a complete line self lubricated products that excel whenever standard lubrication is impractical, including heavy load, high temperature applications. They are manufactured from a variety of copper alloys including Aluminum Bronze (CDA 954), Bearing Bronze (CDA 932) and Manganese Bronze (CDA 863).
Available as Graphite Plugged Bearings, Washers and Self Lubricated Wear plates.
Features
- Self Lubricated when standard lubrication is impractical
- Available in Inch & Metric dimensions
- Performs well under various loads types and speed operations
- Resists corrosive and hostile environments
- Excellent performance in medium to high temperatures up to 600 F
- Compatible with most viscous lubricants and oil and grease applications
Met 90 Standard Alloys
CDA 932 - 660 Bronze
Part# Nominal ID x OD x Length
204001 3/4 x 1 x 1
205001 7/8 x 1-3/8 x 1-1/16
205003 15/16 x 1-3/8 x 1-1/16
205005 1 x 1-3/8 x 1-1/16
206001 1-1/8 x 1-11/16 x 1-3/16
206003 1-3/16 x 1-11/16 x 1-3/16
207001 1-1/4 x 1-15/16 x 1-1/2
207003 1-3/8 x 1-15/16 x 1-1/2
207005 1-7/16 x 1-15/16 x 1-1/2
207007 1-1/2 x 1-15/16 x 1-1/2
209001 1-11/16 x 2-1/4 x 1-9/16
209003 1-3/4 x 2-1/4 x 1-9/16
210001 1-15/16 x 2-7/16 x 1-5/8
210003 2 x 2-7/16 x 1-5/8
211001 2-3/16 x 2-13/16 x 1-3/4
212001 2-7/16 x 3-1/16 x 1-13/16
212003 2-1/2 x 3-1/16 x 1-13/16
215001 2-15/16 x 3-9/16 x 2-23/32
215003 3 x 3-9/16 x 2-23/32
Page dedicated to Met 90 Engineering Data. It includes Standard Clearances, Temperatures, Load Capacities, Speed Coefficient of Friction, Wall Thickness and Surface Finish.
Page dedicated to Met 90 Measurements one should keep in mind when ordering. It includes Standard Machining Tolerances and Operating Data as well as Typical Configurations.
Page dedicated to Selecting the Proper Alloy for your application. It includes Selection, Conformability, Scoring, Compressive Strength, Fatigue Resistance and Corrosion Resistance for CDA932, CDA937, CDA905, CDA954 and CDA863 in a table format.
Metaline Bearings
Let us assist you
Spadone-Alpha SLP LLC., P.O. Box 411, Westport, CT 06881
Call for a quote today! (800) 959-2529
CDA 863 - 430 Bronze
Part# Nominal ID x OD x Length
204002 3/4 x 1 x 1
205002 7/8 x 1-3/8 x 1-1/16
205004 15/16 x 1-3/8 x 1-1/16
205006 1 x 1-3/8 x 1-1/16
206002 1-1/8 x 1-11/16 x 1-3/16
206004 1-3/16 x 1-11/16 x 1-3/16
207002 1-1/4 x 1-15/16 x 1-1/2
207004 1-3/8 x 1-15/16 x 1-1/2
207006 1-7/16 x 1-15/16 x 1-1/2
207008 1-1/2 x 1-15/16 x 1-1/2
209002 1-11/16 x 2-1/4 x 1-9/16
209004 1-3/4 x 2-1/4 x 1-9/16
210002 1-15/16 x 2-7/16 x 1-5/8
210004 2 x 2-7/16 x 1-5/8
211002 2-3/16 x 2-13/16 x 1-3/4
212002 2-7/16 x 3-1/16 x 1-13/16
212004 2-1/2 x 3-1/16 x 1-13/16
215002 2-15/16 x 3-9/16 x 2-23/32
215004 3 x 3-9/16 x 2-23/32
