Measurements to Keep in Mind for Ordering

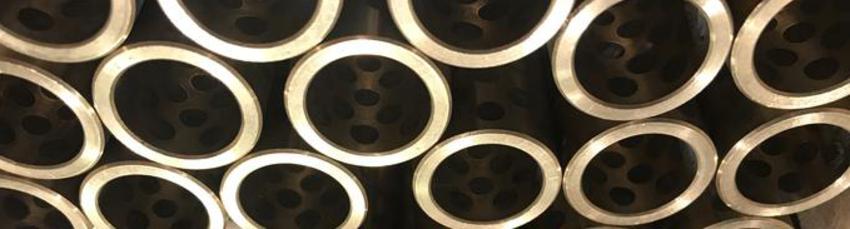

BEARINGS:

• ID x OD x Length


• Bearings with a minimum wall thickness of 3/16 can be supplied with Met90 Inserts


• Machining Tolerances are I.D. +/- .001,   O.D. +/- .001,   Length: +/- 1/64


WASHERS:

• ID x OD x Thickness


• Washers with a minimum wall thickness of 3/16 can be supplied with Met90 Inserts


• Washers 1/8  -  3/16 thick are lubricated on both sides


• Thrust Washer Machining Tolerance is O.D. +/- .001,   Length: +/- .001


WEAR PLATES:

• Width x Length x Thickness


• Wear Plates with a minimum wall thickness of 3/16 can be supplied with MET 90 inserts.


• Wear Plates 1/8  -  3/16 thick are lubricated on both sides.


OPERATING DATA REQUIRED FOR EACH APPLICATION:

• Total Bearing Load (lbs) or Bearing Load (psi)


• Operating Temperature (Sustained or Intermittent)


• Shaft Speed, Shaft Size


• Type of Motion (Rotating, Oscillating, Sliding)


• Base Metal or Alloy
