Spadone-Alfa 200 Series Pillow Flange Units are self-aligning, cast iron housing available with Met 70 or Met 90 bearings in a broad range of sizes. The Flange Units are available as both a 2-Bolt Flange Unit and a 4-Bolt Flange Unit. The Standard sizes are listed below.
200 Series Features
- Self Aligning
- Cast Iron Housings available with Met 70 or Met 90 bearings
- Flange Units available as 2-Bolt or 4-Bolt
- Available in a broad range of sizes
What are the 200 Series Flange Unit Products?
Call for a quote today! (800) 959-2529
Spadone-Alpha SLP LLC., P.O. Box 411, Westport, CTÂ 06881
| Part# | Shaft Size | B | C | D | E | H | J | M | S |
|---|---|---|---|---|---|---|---|---|---|
| TFL-3/4 | 3/4 | 4-13/32 | 1-5/8 | 2-5/32 | 3-17/32 | 7/16 | 13/32 | 1-3/32 | 1-1/8 |
| TFL-7/8 | 7/8 | 4-7/8 | 1-13/16 | 2-15/32 | 3-57/64 | 1/2 | 7/16 | 1-5/32 | 1-7/32 |
| TFL-15/16 | 15/16 | 4-7/8 | 1-13/16 | 2-15/32 | 3-57/64 | 1/2 | 7/16 | 1-5/32 | 1-7/32 |
| TFL-1 | 1 | 4-7/8 | 1-13/16 | 2-15/32 | 3-57/64 | 1/2 | 7/16 | 1-5/32 | 1-7/32 |
| TFL-1-1/8 | 1-1/8 | 5-9/16 | 2-1/16 | 3 | 4-19/32 | 9/16 | 7/16 | 1-5/16 | 1-27/64 |
| TFL-1-3/16 | 1-3/16 | 5-9/16 | 2-1/16 | 3 | 4-19/32 | 9/16 | 7/16 | 1-5/16 | 1-27/64 |
| TFL-1-1/4 | 1-1/4 | 6-23/32 | 2-3/8 | 3-13/32 | 5-1/8 | 5/8 | 1/2 | 1-15/32 | 1-45/64 |
| TFL-1-3/8 | 1-3/8 | 6-23/32 | 2-3/8 | 3-13/32 | 5-1/8 | 5/8 | 1/2 | 1-15/32 | 1-45/64 |
| TFL-1-7/16 | 1-7/16 | 6-23/32 | 2-3/8 | 3-13/32 | 5-1/8 | 5/8 | 1/2 | 1-15/32 | 1-45/64 |
| TFL-1-1/2 | 1-1/2 | 6-23/32 | 2-3/8 | 3-13/32 | 5-1/8 | 5/8 | 1/2 | 1-15/32 | 1-45/64 |
| TFL-1-11/16 | 1-11/16 | 5-27/32 | 2-13/16 | 3-7/8 | 5-3/4 | 11/16 | 9/16 | 1-17/32 | 1-23/32 |
| TFL-1-3/4 | 1-3/4 | 5-27/32 | 2-13/16 | 3-7/8 | 5-3/4 | 11/16 | 9/16 | 1-17/32 | 1-23/32 |
| TFL-1-15/16 | 1-15/16 | 7-7/16 | 3-1/16 | 4-9/32 | 6-3/16 | 23/32 | 9/16 | 1-7/8 | 1-63/64 |
| TFL-2 | 2 | 7-7/16 | 3-1/16 | 4-9/32 | 6-3/16 | 23/32 | 9/16 | 1-7/8 | 1-63/64 |
| TFL-2-3/16 | 2-3/16 | 8-5/8 | 3-3/8 | 5 | 7-1/4 | 5/8 | 5/8 | 1-1/2 | 2-9/64 |

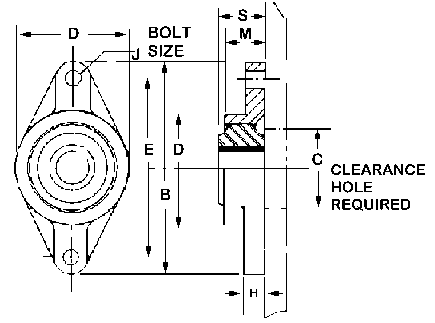

Standard 2 Bolt Flange Unit Sizes
| Part# | Shaft Size | B | BC | C | D | E | H | J | M | S |
|---|---|---|---|---|---|---|---|---|---|---|
| FFL-3/4 | 3/4 | 3-3/8 | 3-17/32 | 1-5/8 | 2-1/8 | 2-1/2 | 7/16 | 3/8 | 1-3/32 | 1-3/16 |
| FFL-7/8 | 7/8 | 3-3/4 | 3-57/64 | 1-13/16 | 2-11/32 | 2-3/4 | 1/2 | 7/16 | 1-5/32 | 1-7/32 |
| FFL-15/16 | 15/16 | 3-3/4 | 3-57/64 | 1-13/16 | 2-11/32 | 2-3/4 | 1/2 | 7/16 | 1-5/32 | 1-7/32 |
| FFL-1 | 1 | 3-3/4 | 3-57/64 | 1-13/16 | 2-11/32 | 2-3/4 | 1/2 | 7/16 | 1-5/32 | 1-7/32 |
| FFL-1-1/8 | 1-1/8 | 4-1/4 | 4-19/32 | 2-1/16 | 3 | 3-1/4 | 9/16 | 7/16 | 1-5/16 | 1-3/8 |
| FFL-1-3/16 | 1-3/16 | 4-1/4 | 4-19/32 | 2-1/16 | 3 | 3-1/4 | 9/16 | 7/16 | 1-5/16 | 1-3/8 |
| FFL-1-1/4 | 1-1/4 | 4-5/8 | 5-1/8 | 2-3/8 | 3-13/32 | 3-5/8 | 5/8 | 1/2 | 1-15/32 | 1-21/32 |
| FFL-1-3/8 | 1-3/8 | 4-5/8 | 5-1/8 | 2-3/8 | 3-13/32 | 3-5/8 | 5/8 | 1/2 | 1-15/32 | 1-21/32 |
| FFL-1-7/16 | 1-7/16 | 4-5/8 | 5-1/8 | 2-3/8 | 3-13/32 | 3-5/8 | 5/8 | 1/2 | 1-15/32 | 1-21/32 |
| FFL-1-1/2 | 1-1/2 | 4-5/8 | 5-1/8 | 2-3/8 | 3-13/32 | 3-5/8 | 5/8 | 1/2 | 1-15/32 | 1-21/32 |
| FFL-1-11/16 | 1-11/16 | 5-3/8 | 5-53/64 | 2-13/16 | 4-1/8 | 4-1/8 | 11/16 | 9/16 | 1-17/32 | 1-11/16 |
| FFL-1-3/4 | 1-3/4 | 5-3/8 | 5-53/64 | 2-13/16 | 4-1/8 | 4-1/8 | 11/16 | 9/16 | 1-17/32 | 1-11/16 |
| FFL-1-15/16 | 1-15/16 | 5-5/8 | 6-3/16 | 3-1/16 | 4-7/16 | 4-3/8 | 22/32 | 9/16 | 1-7/8 | 1-29/32 |
| FFL-2 | 2 | 5-5/8 | 6-3/16 | 3-1/16 | 4-7/16 | 4-3/8 | 22/32 | 9/16 | 1-7/8 | 1-29/32 |
| FFL-2-3/16 | 2-3/16 | 6-3/8 | 7-1/4 | 3-3/8 | 4-3/4 | 5-1/8 | 25/32 | 5/8 | 1-15/16 | 2-3/16 |
| FFL-2-7/16 | 2-7/16 | 6-7/8 | 7-15/16 | 3-3/4 | 5-3/8 | 5-5/8 | 27/32 | 5/8 | 2-1/16 | 2-3/8 |
| FFL-2-1/2 | 2-1/2 | 6-7/8 | 7-15/16 | 3-3/4 | 5-3/8 | 5-5/8 | 27/32 | 5/8 | 2-1/16 | 2-3/8 |
| FFL-2-15/16 | 2-15/16 | 7-5/8 | 8-31/64 | 4-3/16 | 6-1/2 | 6 | 3/4 | 3/4 | 1-15/16 | 2-49/64 |
| FFL-3 | 3 | 7-5/8 | 8-31/64 | 4-3/16 | 6-1/2 | 6 | 3/4 | 3/4 | 1-15/16 | 2-49/64 |

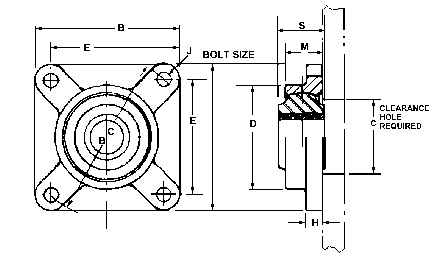

Standard 4 Bolt Flange Unit Sizes
